Transformer Bushings

Transformer Bushings :

For Power / Distribution/ Cast Resin / Dry Type/ Furnace/ Loco /Induction/ Booster / CT & PT Transformers

Indian and International Standards Followed :- IS : 3347, DIN : 42530-42531-42532-42533, BS : 2562

Range of Bushing Metal Parts :- Class : 1 kV - 3 kV - 12 kV - 24 kV – 36 kV – 52 kV – 72.5 kV

Rated Current : 250 A – 630 A – 1000 A – 2000 A – 3150 A up to 10000 Amps & Also, As per Customer’s Specifications and requirements.

“To get the password to open our product catalogue, please contact Sales office OR email us on contactsbw@gmail.com”

Material Specifications of LV / HV Bushings
Porcelain Parts Ceramic KER 110.1 To DIN 40685 Brown Colour To RAL 8016
Brass Parts CuZn40Pb2 Ms 60F34 DIN 17673 or GD-Ms 60 or GK-MS 60 DIN 1709
Copper Parts E-Cu F25 DIN 40500
Steel Parts CrNi or St 37 DIN 17100 or DIN 125
N.B.R. Parts Asbestos Free Nitrile Rubber Hardness Shore 65-70 DIN 53505

Finish and Plating :
  • Natural
  • We have in-house plating (Tin, Nickel, Silver) capabilities so we could not only meet the delivery requirements of our key customers but also give guaranteed plating thickness, and as per customers specifications (from material specifications of HV / LV Bushings.)

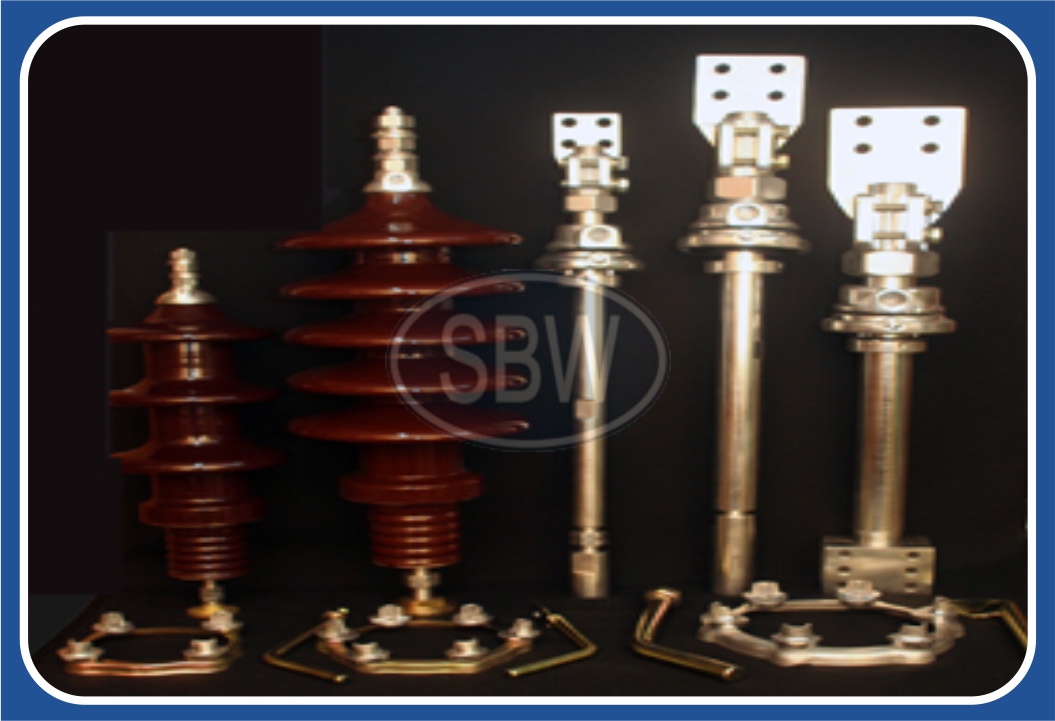

    • Click here HV Bushings

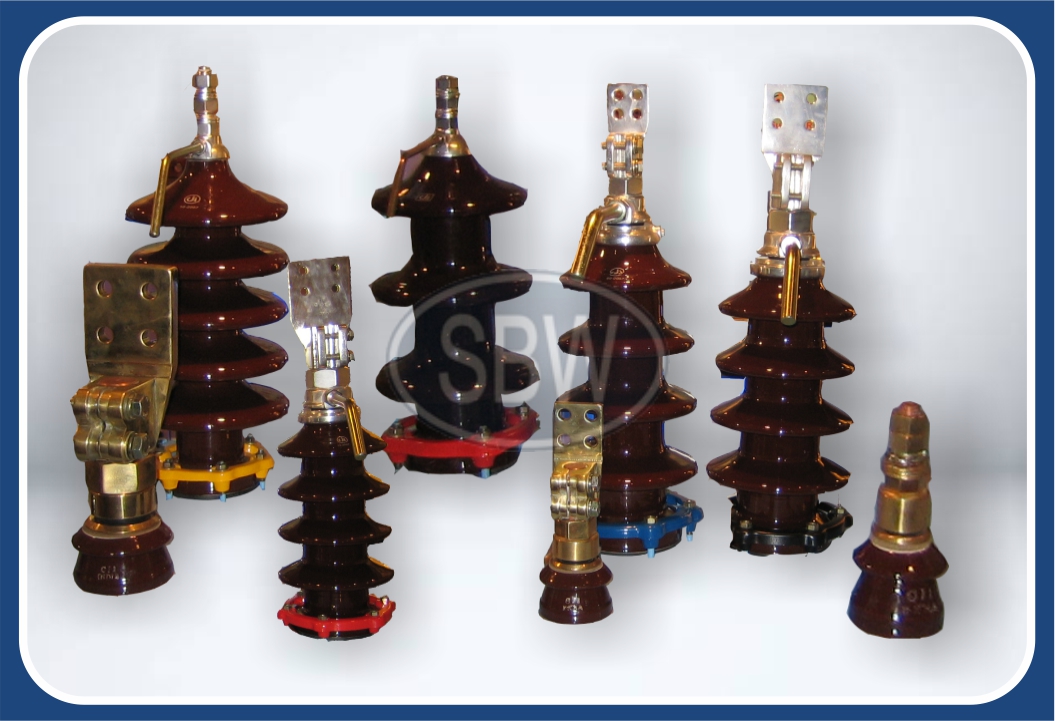

    TRANSFORMER BUSHINGS

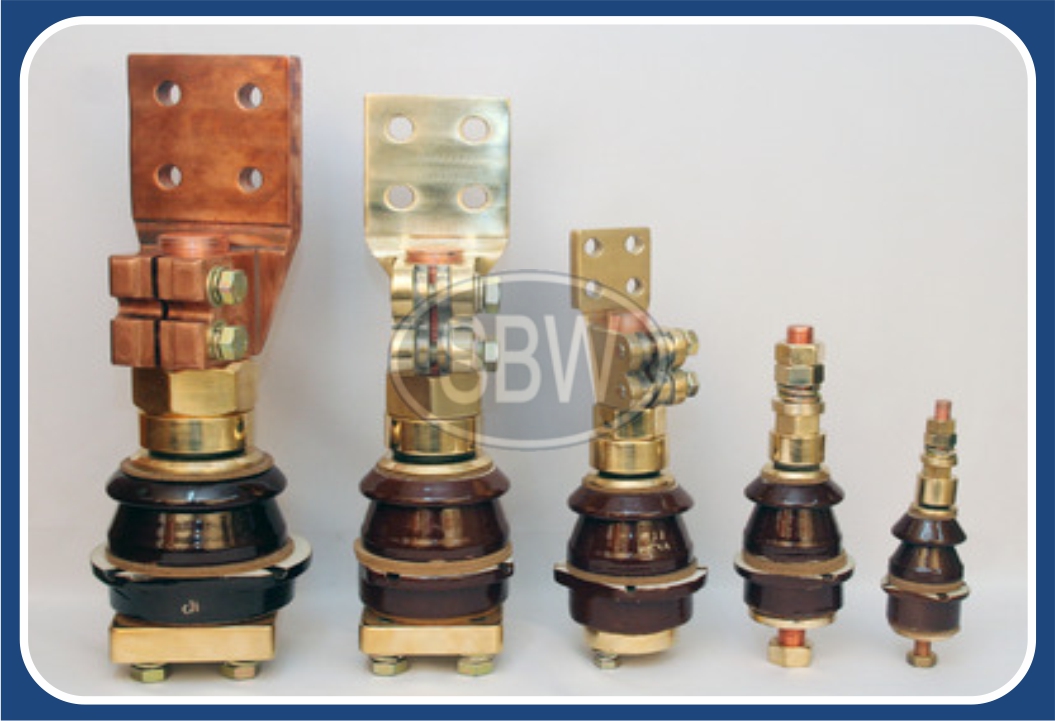

    Click here for LV Bushings
